Explore our state-of-the-art printed circuit board assemblies manufactured to meet the strict IPC-A-610 Class 3 specifications across diverse industrial verticals.
How quality control mechanisms are shifting from standard inspection to data-driven zero-defect methodologies in smart EMS factories.
In the contemporary electronics contract manufacturing sector, the global demand for high-reliability Surface Mount Technology (SMT) assemblies has surged. The rapid evolution of aerospace, automotive electronics (especially New Energy Vehicles), medical hardware, and telecommunications infrastructure places unprecedented stress on board-level reliability. Within these applications, a minor solder joint failure could lead to catastrophic system malfunctions. As a result, the SMT testing process is no longer treated as a simple post-production checklist, but as a holistic, multi-phase closed-loop quality system.
Modern factories must align their quality policies with strict ISO standards while implementing advanced testing protocols. Solder Paste Inspection (SPI), Automated Optical Inspection (AOI), Automated X-Ray Inspection (AXI), In-Circuit Testing (ICT), and Functional Testing (FCT) form the core pillars of a high-quality SMT testing process. By capturing micro-defects early in the assembly cycle, manufacturers mitigate risk, reduce rework expenses, and maximize yield. Industry statistics indicate that identifying component misalignments or solder bridge defects during the post-paste printing phase is 10 times less costly than finding them after wave or reflow soldering, and 100 times less costly than field failures.
Shenzhen STHL is a high-quality provider of electronics manufacturing services (EMS) in China, we serve customers worldwide along the whole industry chain including PCB layout, components sourcing, PCB fabrication, PCBA assembly, cable assembly, box build assembly and comprehensive testing services.
It was established in 2006, with 20 years of experience in electronics contract assembly manufacturing. Currently, STHL has 220+ staff members. Our 10,000 sqm facilities include 7 SMT assembly lines, 2 DIP/THT lines, 2 function testing lines and 2 finished device assembly lines.
At STHL, we provide electronics assembly services for energy power, communications, automotive, medical, consumer electronics, computers & storage, safety & security, commercial and industrial products. Our customers mainly from USA, Germany, Italy, UK, Poland, New Zealand, Argentina, Brazil, Turkey, Korea, Thailand, and the other 90 regions of the world.
As an IATF16949, ISO9001, ISO14001, and ISO13485 certificated electronics assembly manufacturer, we produce products exactly comply with RoHS standard and quality guarantee. Based on our excellent engineering and production capacities in technical areas such as materials analysis & storage, advanced equipment, reliability testing (AOI, X-RAY, ICT test and function test), high effective SMT and THT assembly, we are recognized as a long-term reliable PCBA vendor by more and more customers worldwide.
Welcome to visit STHL factory at any time.
A deep dive into the multi-stage quality gates integrated directly into our surface mount process flow.
Positioned immediately after the screen printing phase, SPI monitors solder paste deposit volume, height, area, and registration. By detecting height anomalies or stencil blocking beforehand, we avoid component shifts or dry joints before the PCB undergoes reflow soldering.
We utilize both pre-reflow and post-reflow AOI. Utilizing high-speed optical cameras with multi-angle lighting, AOI reads component markings, verifies polarity alignment, detects tombstoning, and analyzes solder fillet heights to ensure flawless IPC compliance.
For complex packages like Ball Grid Arrays (BGAs), Micro-BGAs, and QFNs, the solder connections are hidden from optical view. AXI penetrates these chips to inspect internal voids, micro-bridging, short circuits, and solder wetting, guaranteeing absolute connectivity integrity.
We can handle a wide range of advanced components, including:
But our commitment to quality goes beyond component expertise. We utilize advanced inspection techniques, including AOI and X-Ray inspection, to guarantee flawless assembly.
STHL PCBA also excels in Through-Hole Technology (THT) assembly. Our services encompass:
From initial prototyping and components procurement to mechanical box builds and final quality sign-offs.
STHL operates 7 automated PCB assembly lines for both prototype and mass production. Advanced SMT ensures precise component placement and quality. Skilled technicians provide efficient THT assembly and RoHS-compliant lead-free soldering.
STHL PCB fabrication service produces high-quality, reliable printed circuit boards from simple singles to complex multi-layers, from flex PCB to rigid-flex PCB, we use premium materials and controlled processes to meet precise specifications.
STHL offers global electronic component sourcing and supply chain solutions. Our vast supplier network and expertise ensure access to genuine, certified parts, mitigating risks of counterfeits, allocation, and long lead times to secure your production schedule.
With the precision manufacturing of cable assembly components including handles, retention systems, connectors, and shielding in a wide range of materials and finishes, we have performed many successful cable assembly for many customers from various industrial applications.
Making your projects at STHL from SMT assembly to box build assembly is very cost-effective and fast to market. Covering everything from putting a PCBA into the enclosure with all functions testing to a complete product assembly packaged and ready for delivery to your customers, we can supply the full support.
STHL conducts functional testing (FCT) to verify product performance, preventing defects such as circuit issues, missing or incorrect components. This ensures delivered products are stable and fully qualified.
The convergence of AI, Big Data, and smart manufacturing systems in the future of SMT Quality Assurance.
Connecting 3D SPI systems directly to stencil printers. When a print alignment drift is identified, the printer auto-adjusts coordinates in real-time, correcting errors before the board progresses downstream.
Incorporating advanced machine learning models to reduce false call rates (FCR) in AOI inspection. The system self-learns variance thresholds, allowing high inspection throughput while optimizing component defect detection.
Complete synchronization between SPI, AOI, AXI and the Manufacturing Execution System (MES). All quality metadata is paired with the serial board QR-code for complete life-cycle component traceability.
Customized testing parameters and verification processes designed specifically for high-stress industrial applications.
Automotive PCBA, such as EV charger controllers and ADAS modules, are exposed to extreme thermomechanical stresses. We implement extensive thermal cycle profiling combined with rigorous automated X-Ray inspection (AXI) to guarantee that solder joints do not exhibit micro-voiding or propagation cracks over extended operational life cycles.

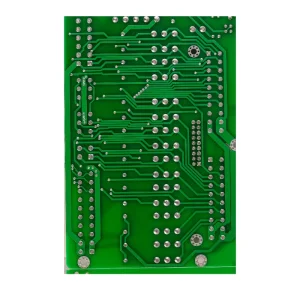

With human safety depending directly on hardware performance, our medical assemblies undergo double-pass AOI, strict boundary-scan testing, and custom environmental stress screening (ESS). This is highly essential for life-supporting devices such as pulse oximeters, ECG monitors, and diagnostic scanners.

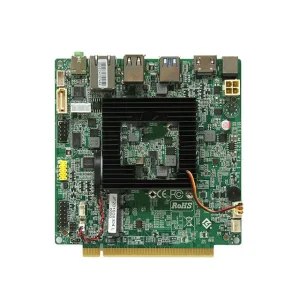

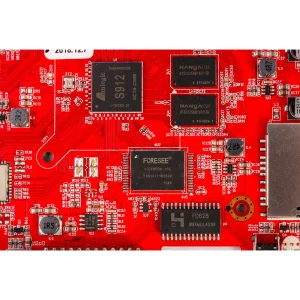

Power distribution systems, industrial tools, and video servers require high layer-count PCBs that handle high currents and heat loads. Our processes utilize high-density component testing, in-circuit test fixtures (ICT) for impedance validation, and final functional verification to prevent field failure.
Answers to crucial SMT assembly quality control and factory capabilities questions asked by engineering procurement teams.
Discover more specialized PCB assembly products manufactured with industry-leading SMT precision and robust functional validation.
